Spherical Anchor Nut
D25-75
Quantity:
Yidao spherical anchor nut is an important part of thread bar accessory, the spherical anchor nut is used with spherical plate for prestressiong side in post tensioning side for Bridges, anchoring,tension members. Another side use flat anchor nut and flat plate to fix the thread bar.
Our spherical anchor nut is hot forged and threaded to fit for thread bar, material carbon steel C45, 40CR heat treatment to grade8, 10. Load force can match for steel bar grade PSB500/630, PSB830/1030, PSB930/1080, PSB1080/1230 etc.

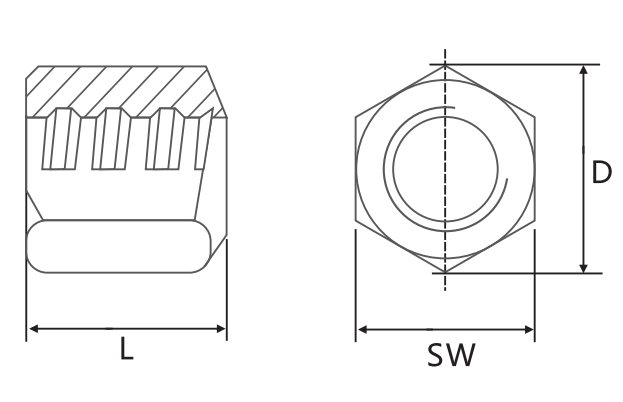

Dimesions & Materials
| Dia/mm | SW/mm | L/mm | Weight/kg,pcs |
| 25 | 50 | 60 | 0.7 |
| 28 | 50 | 60 | 0.7 |
| 32 | 60 | 72 | 1.2 |
| 32 | 65 | 72 | 1.4 |
| 36 | 65 | 80 | 1.65 |
| 40 | 70 | 100 | 2 |
| 50 | 80 | 110 | 2.8 |
| 63.5 | 100 | 115 | 5 |
| 75 | 115 | 160 | 8.84 |
Spherical anchor nut material: 45# for PSB500,PSB830, Y1030, 120ksi thread bar; 40CR for PSB930,PSB1080, Y1050, 150ksi thread bar.
Spherical anchor nut surface: Black, Hot dip galvanized, epoxy coated.
