D15 Hex Nut For Formwork
D15
Quantity:

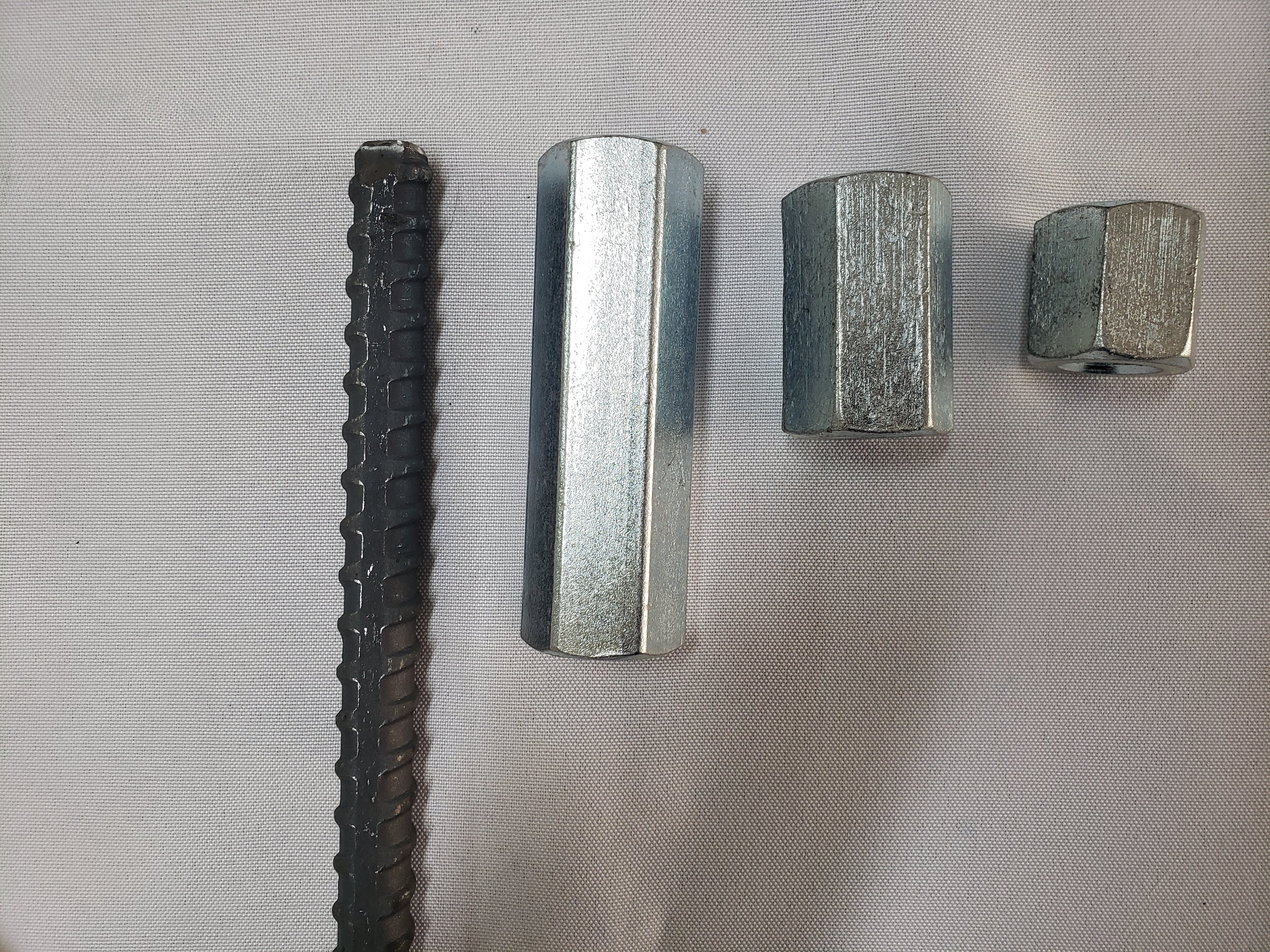

D15 Hex Nut For Formwork
Our D15 hex nut is threaded to fit for formwork tie rod, loop anchor, hook anchoret.
Material carbon steel C45 heat treatment to grade8, load force can match for formwork tie rod/ bar grade PSB830/1030, 900/1100MPA.

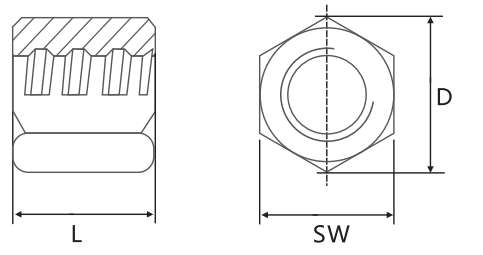

Dimesions
| Dia/mm | SW/mm | L/mm | Weight/kg,pcs | load force/kN |
| 15 | 30 | 25 | 0.12 | locked nut, no take load force |
| 15 | 30 | 30 | 0.14 | loacked nut, no take load force |
| 15 | 30 | 50 | 0.20 | min 180kN, for tie rod |
| 15 | 30 | 90 | 0.42 | min 180kN |
| 15 | 30 | 100 | 0.45 | min 180kN, coupling |
| 15 | 30 | 110 | 0.52 | min 180kN |
Hex nut surface: Black, Electrogalvanizing,Hot dip galvanized, epoxy coated.
