D25 PSB930 Prestress bar
25-930
Quantity:
D25 PSB930 Prestress bar

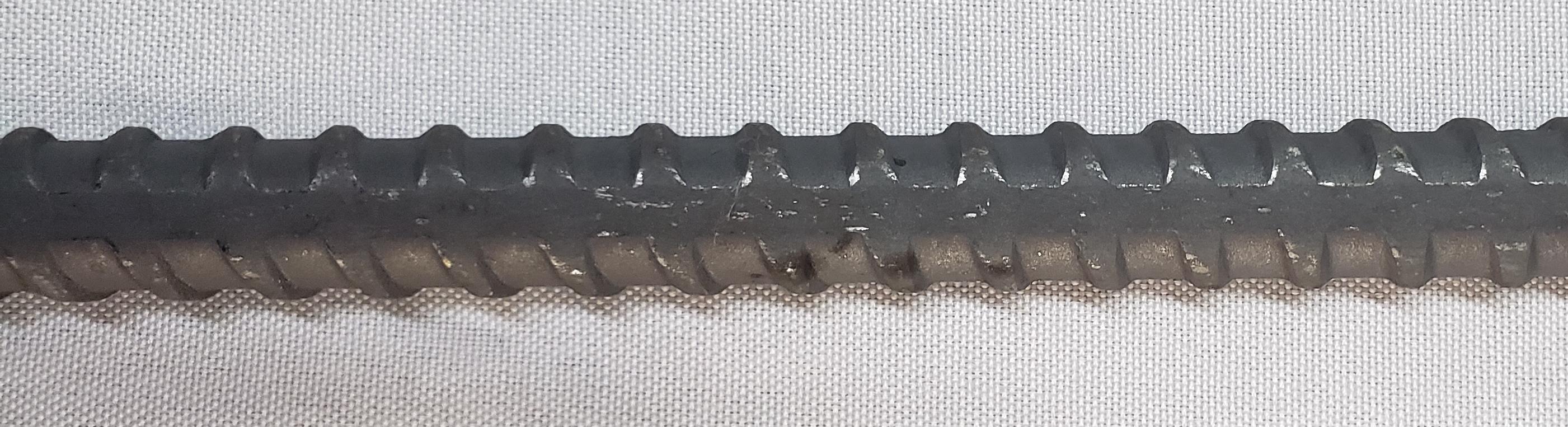

Yidao thread bar/prestress bar anchor is hot rolled continuous thread along its entire, so it is easily cut short or lengthened with couplers at any location. PSB930/1080 is right hand threaded type ,similar to ASTM A722 Y1030, 150KSI.
Dimensions & mechanical properties,thread bar/prestress bar anchor
| Dia[mm] | dh[mm] | dv[mm] | h[mm] | b[mm] | c[mm] |
| 25 | 25 ±0.4 | 25 +0.4/-0.8 | 1.6 | 6.0 | 12 |
| Yield strength | min 930MPA(457KN) | |
| Tensile strength | min 1080MPA(530KN) | |
| Elongation,5d[A%] | min 7 | |
| Weight[KG/M] | 4.1 | |
| Cross Section Area,A[mm2] | 491 | |
thread bar/prestress bar anchor

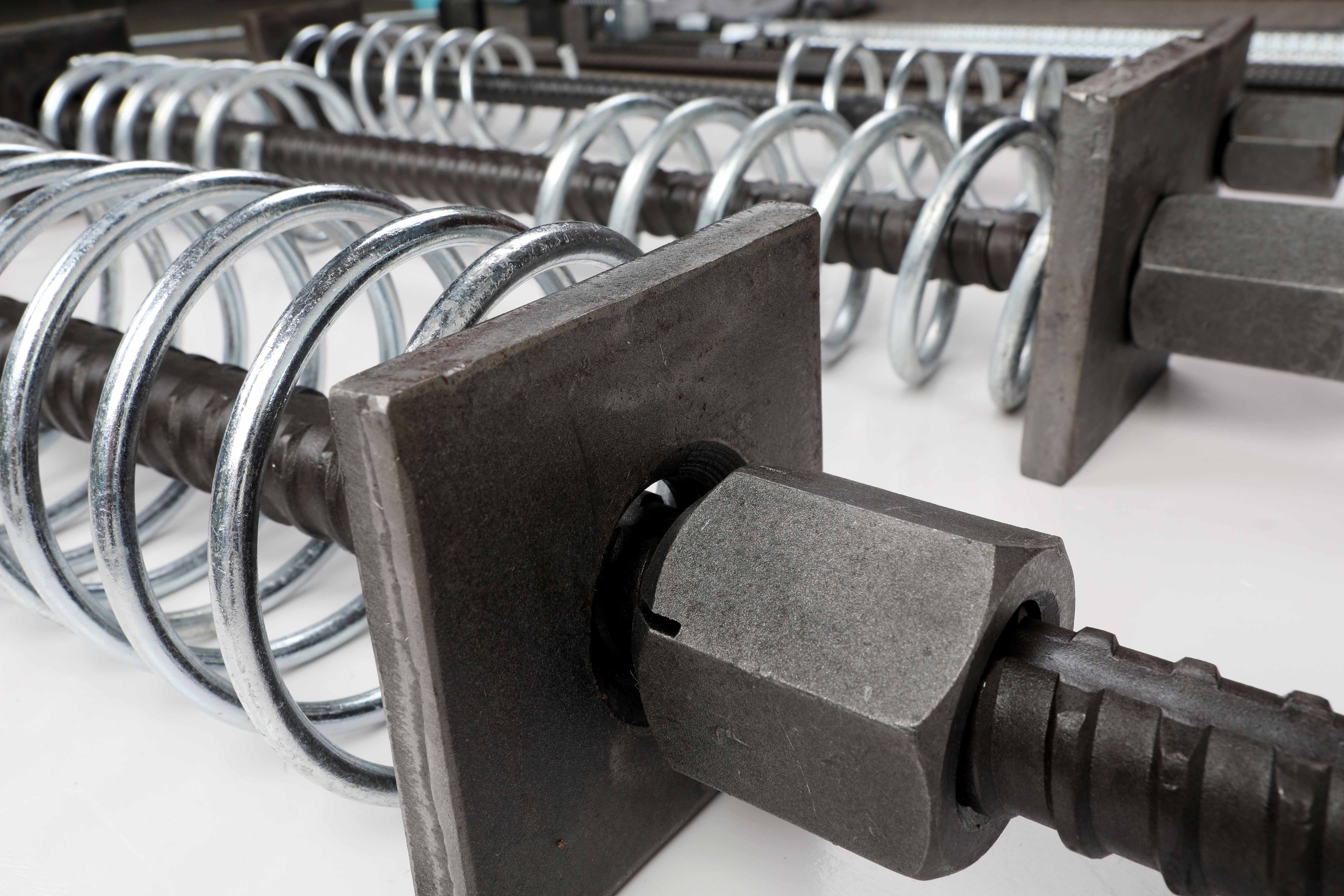

Thread bar Accessories: hex nut, flat plate, domed nut, domed plate, couplers etc.
Surface: black, zinc plate, hot galvanized, epoxy coated available.
Applications:Bridge, Road,Railway, Highway, Ground anchors, Piles, Foundations etc.
Company Profile
Handan Yidao Metal Products,Co.,Ltd, a leading manufacturer & exporter on full threaded bar system.We have professional engineer to develop OEM business or customer's design. Implementing strict QC inspection from material to finished products for each order shipment.
* Full Diameter 15/20/25/28/32/36/40/50/63.5/75mm, thousand tons stock and delivery fast.
* Full grade 60/75/100/150, 120ksi, 150ksi, yield strength 500/670/800/830/930/1080/1200MPA etc.
More details pls call us.
