D50 PSB930 Post Tensioning Bar
50-930
Quantity:
D50 PSB930 Post Tensioning Bar
Yidao thread bar anchor/post tensioing bar is hot rolled continuous thread along its entire.
Thread bar max length 12meter and can cut short or lengthened with couplers at any location.
Dimensions & mechanical properties
| Dia [mm] | dh [mm] | dv [mm] | h[mm] | b[mm] | l[mm] |
| 50 | 50±0.5 | 50 +0.4/-1.2 | 3 | 9 | 24 |
| Yield strength | min 930MPA(1826KN) | |
| Tensile strength | min 1080MPA(2120KN) | |
| Elongation,5d[A%] | min 7 | |
| Weight[KG/M] | 16.28 | |
| Cross Section Area,A [mm2] | 1963 | |

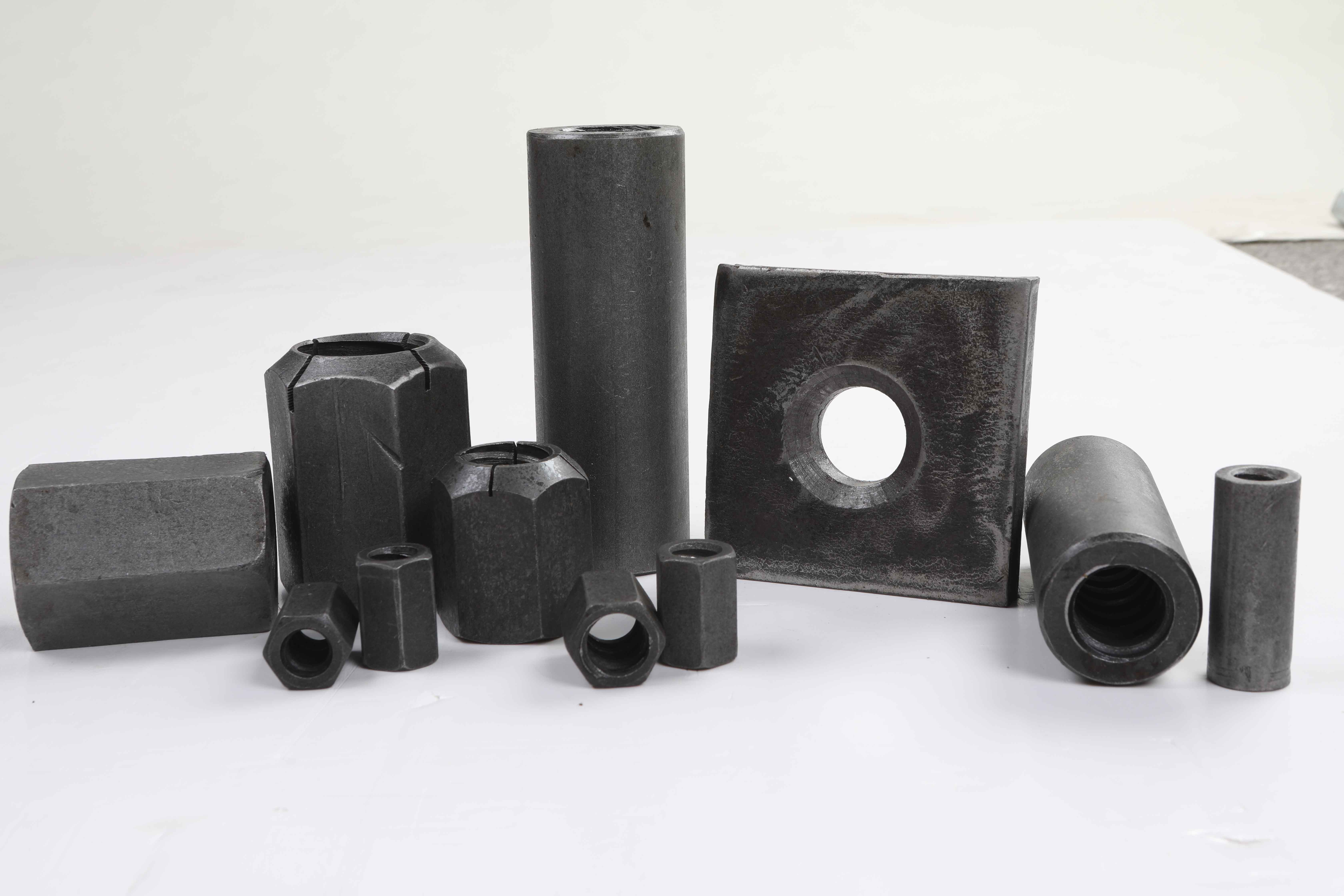

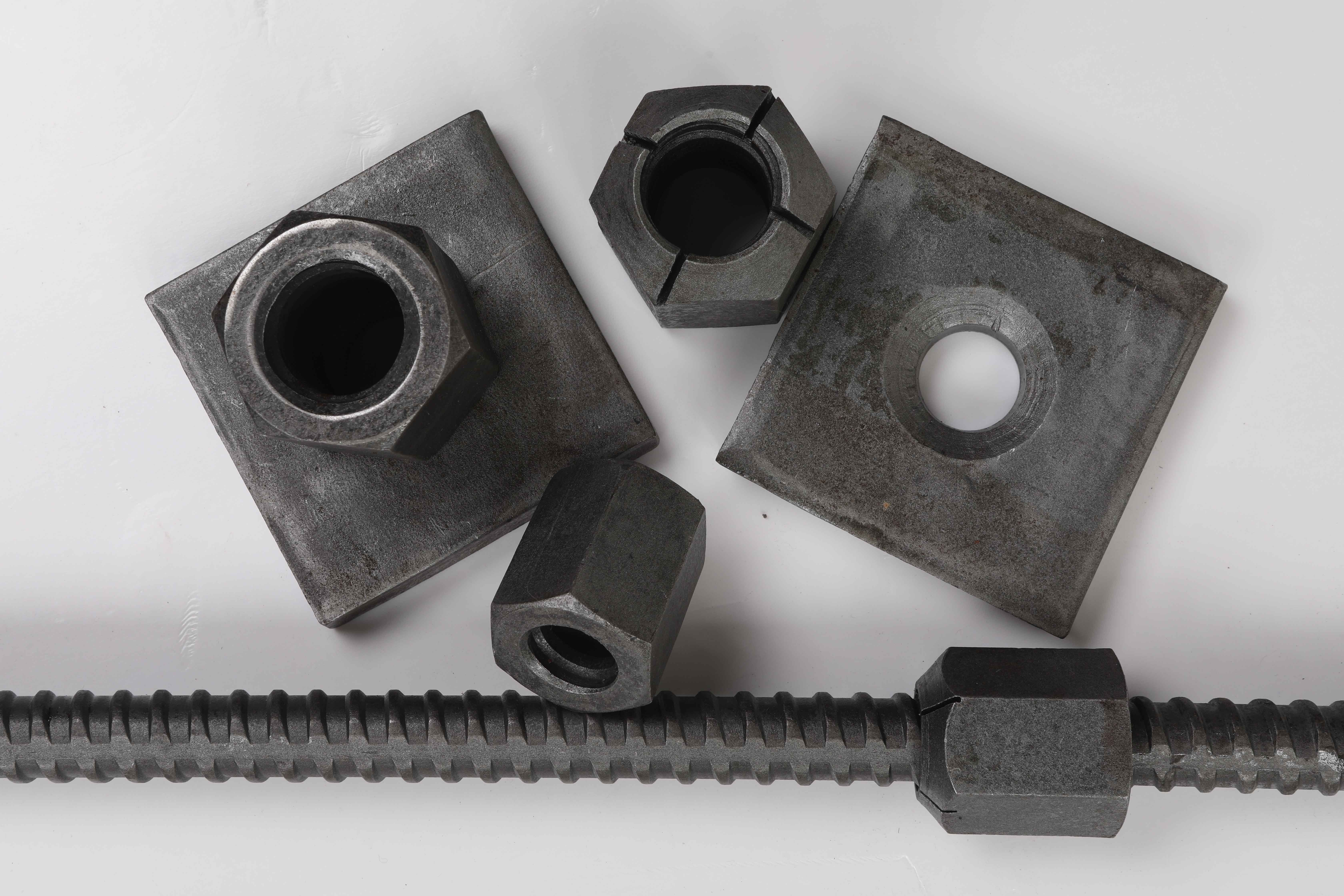

Accessories: hex nut, flat plate, domed nut, domed plate, couplers, centralizer, wire mesh etc.
Surface: black, zinc plate, hot galvanized, epoxy coated available.
Applications: Bridge, Road, Railway, Highway, Ground anchors, Piles, Sheet piles, Post tensioning etc.
#thread bar, anchor, post tensioning
