Formwork Tie Rods D15/17mm

Yidao hot rolled thread bar/ formwork tie rods are hot rolled right hand thread with a coarse pitch that is robust, self-cleaning. The high thread pitch allows a quick assembly and disassembly of the connecting and anchoring parts.  Furthermore, it can be cut at any point and used continuously with couplers or nuts.

formwork tie rods are high tensile strength, with full ranges accessories, it is widely used by formwork manufactures around the world and has proven itself countless times on jobsites.

Formwork tie rods D15/17mm

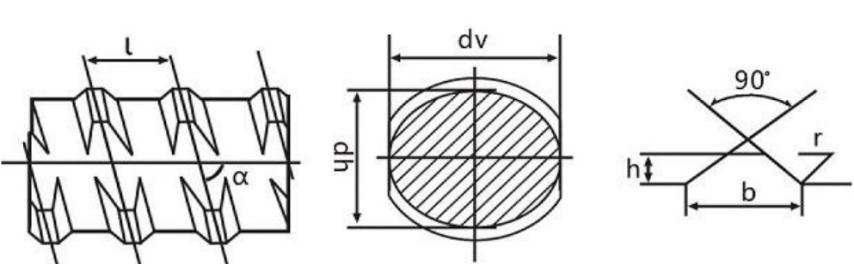

Dimesions & Mechanical Properties



Dia [mm]	dh [mm]	dv [mm]	h[mm]	b [mm]	l [mm]
15	14.7±0.2	14.4±0.5	1±0.5	4.2±0.3	10±0.2



Yield strength		min 830MPA(147KN)	typical yield 900MPA(159KN)
Tensile strength		min 1030MPA(182KN)	typical tensile 1100MPA(195KN)
Elongation,5d[A%]		min 7
Weight[KG/M]		1.4
Cross Section Area,A [mm2]		177

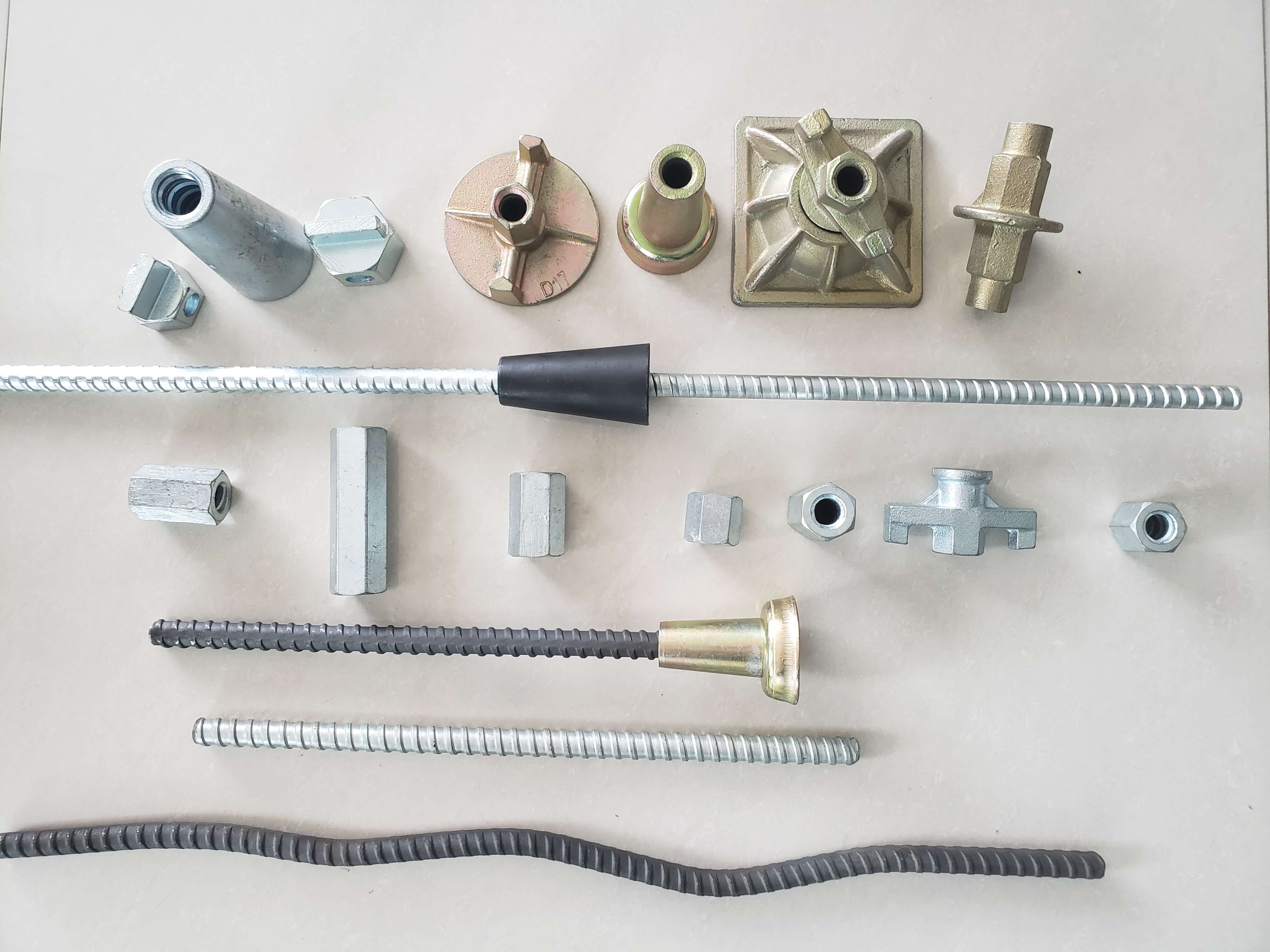

Formwork tie rods accessories: hex nut, locked nut, hex coupler, connector, 2-wing nut, 3-wing nut, round wing nut, waterstop, square plate, rectangle plate,steel cone etc.

Formwork tie rods surface: black,  electrogalvanized, hot dip galvanizing available.



Formwork tie rods applications: Formwork construction; Anchoring in rock or concrete using expansion shells; Anchoring climbing formworks etc.
