Dome Plate
D19-32
Quantity:
Dome plate is used with dome nut to fix thread bar anchor system.
Features
High load bearing characteristics.
Dome profile allows for 18° angles of alignment when installing the rock bolt with a domed ball washer or dome nut .

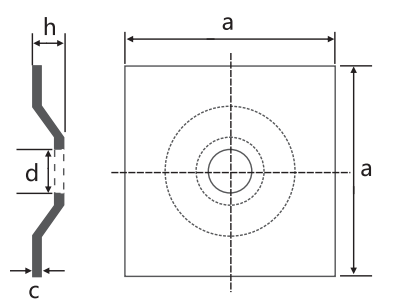

Dimesions & Materials
| Dia/mm | a/mm | c/mm |
| 100 | 8 | |
| 19 | 120 | 5 |
| 20 | 120 | 8 |
| 25 | 150 | 6 |
| 25 | 150 | 8 |
| 25 | 150 | 10 |
| 25 | 150 | 12 |
| 25 | 150 | 16 |
| 28 | 150 | 10 |
| 32 | 200 | 10 |
| 32 | 200 | 12 |
| 32 | 200 | 16 |
Dome Plate Size: Thickness and diamesions can be OEM available.
Dome Plate Material: Q235-A36, Q355, Q460, Q550 etc
Dome Plate surface: Black, Electrogalvanizing,Hot dip galvanized, epoxy coated.
