D63.5 Thread Bar Grade 550/700 for piling

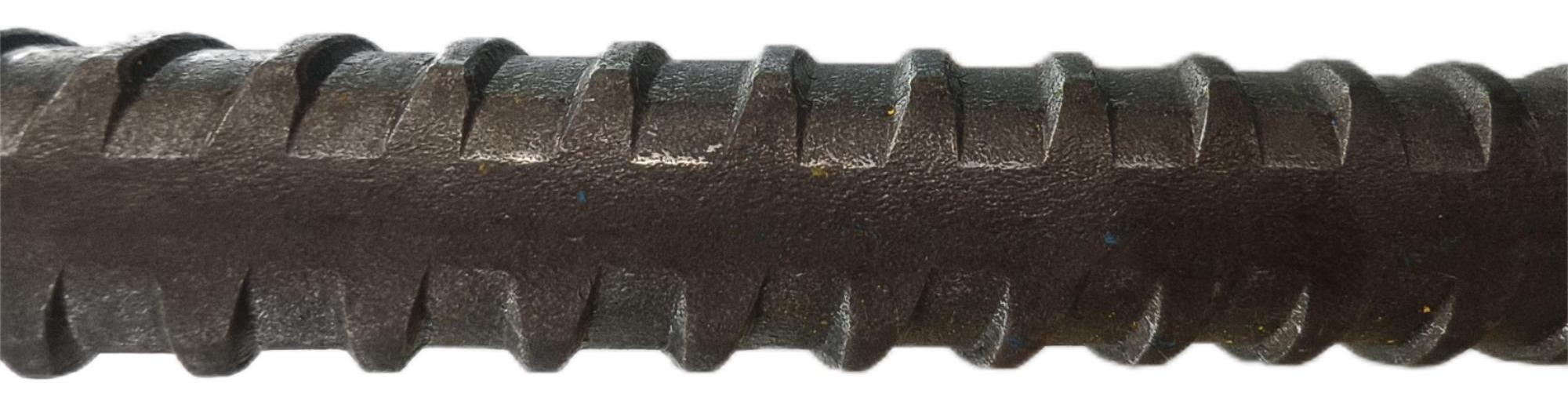

Yidao D63.5 thread bar is hot rolled continuous thread along its entire.

Key Features:

  1. Continous thread along entire bar can be cut short or extension with coupler at any point.

  2. Coarse thread for self-cleaning, reusable and cost effective.

  3. Coarse thread guarantees max bond between steel and cement grout, excellent load transfer into structures.

  4. Different corrosion protection by hot dip galvanized, epoxy coated, DCP etc.

  5. Thread bar is easy handing in job sites for formwork ties, reinforcing coupling, soil nails, micropiles, soil and rock bolts, anchorage systems for mining, tunneling and post tensioning system.



D65.3 thread bar is right hand threaded type

yidao threadbaryidao threadbar

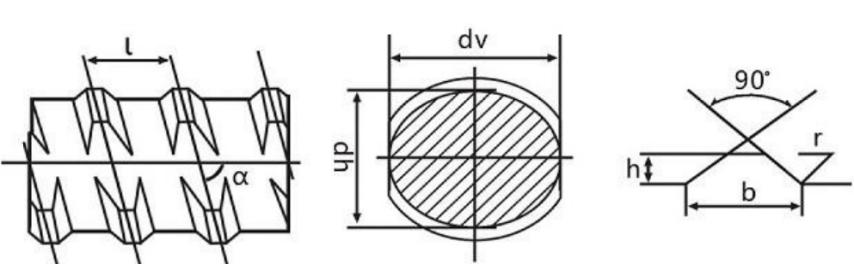

Dia [mm]dh [mm]dv  [mm]h[mm]b[mm]l[mm]
63.563.5±0.563.5 +0.4/-1.231222

Yield strengthmin 550MPA(1742KN)
Tensile strength  min 700MPA(2217KN)
Elongation,5d[A%] min7
Weight[KG/M]26.5
Cross Section Area,A [mm2]3167


D63.5 Thread bar Accessories: hex nut, flat plate, domed nut, domed plate, couplers, centralizer, wire mesh etc.

D63.5 Thread bar Surface: black, zinc plate, hot galvanized, epoxy coated available.

D63.5 Thread bar Applications: Bridge, Road, Mining, Tunnels, Steel Sheet Pile etc.
